In the realm of construction, understanding the types of masonry joints is not just a matter of technicality but a cornerstone of structural integrity and aesthetics. These joints are critical for the distribution of weight, accommodation of temperature-induced movements, and protection against water infiltration. Choosing the right types of masonry joints can greatly influence a building’s durability and appearance, making this knowledge indispensable for builders and architects alike.
Table of Contents
What are Masonry Joints?
Masonry joints are the seams between the individual units of bricks, stones, or concrete blocks in construction. These joints play a crucial role in the stability and appearance of masonry structures. They help distribute weight, accommodate movements due to temperature changes and settle, and keep out water. The choice of masonry joint can impact the waterproofing, thermal insulation, and even the visual appeal of the building.
Types of Masonry Joints
Understanding the various masonry joints is essential for anyone involved in building or maintaining masonry structures. Each joint type not only contributes to the structural integrity but also to the overall aesthetic and functional longevity of a building. Here’s a detailed look at the most common types of masonry joints:
1. Mortar Joints
Mortar joints typically involve the application of mortar between the masonry units. Different styles can be employed based on the requirements for strength, weather resistance, and appearance.
- Concave Joint: Often used in exterior walls, the concave joint is designed with a rounded, inward shape that helps effectively shed water and resist rain penetration. This type of joint is among the best for waterproofing, making it a popular choice in areas with heavy rainfall or moist conditions.
- Vee Joint: Functionally similar to the concave joint, the Vee joint also facilitates water runoff but is distinguished by its sharper “V” shaped groove. This joint not only helps in managing water but also adds a unique aesthetic touch to the structure, making it a favored option for projects where visual design is a priority.
- Flush Joint: In flush joints, finish the mortar level with the surface of the bricks, stones, or blocks, providing a smooth, flat appearance. While this type of joint creates a clean and uniform look, it resists water less effectively compared to concave or Vee joints.
2. Dry Joints
Dry joints involve minimal or no use of mortar and are used where visual appeal and natural aesthetics are preferred, or in non-load bearing applications.
- Butt Joint: This simplest form of masonry joint involves laying units directly next to each other without mortar. You commonly see butt joints in dry stone walls and other decorative applications where structural strength is not the main concern.
- Slip Joint: Designed to allow for movement, slip joints are particularly useful in installations that may experience thermal expansion and contraction. By accommodating vertical or horizontal shifts, slip joints prevent the formation of cracks and structural damage. They are ideal for use between different sections of large buildings.
3. Specialized Joints
Some joints are tailored for specific applications or conditions, focusing on particular aspects like enhanced shadow effects or improved water runoff.

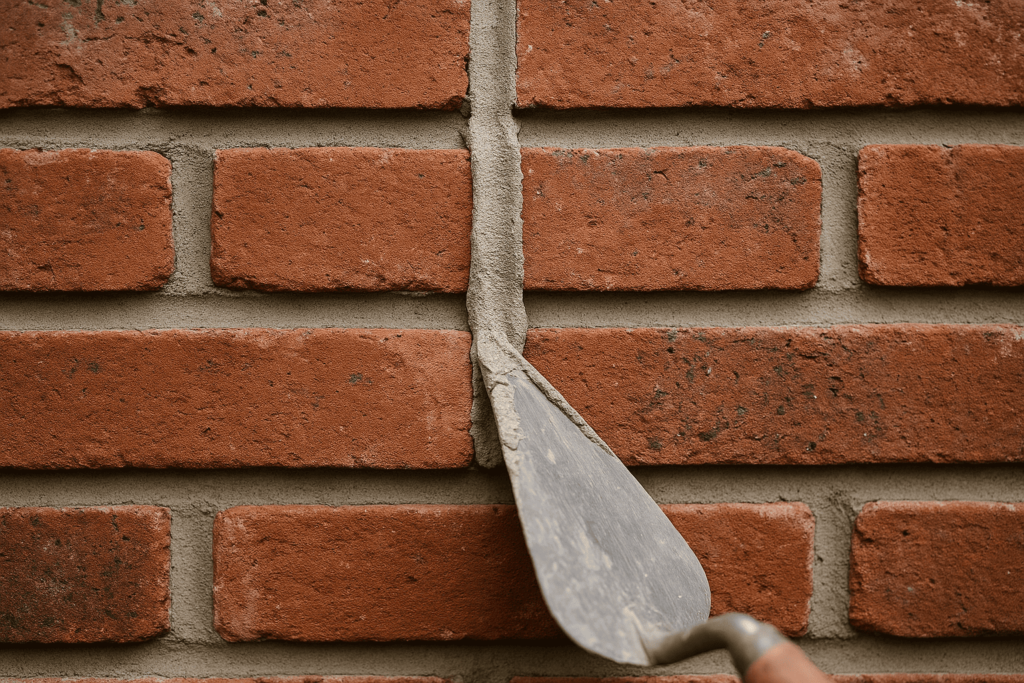

- Raked Joint: In a raked joint, the mortar is deliberately recessed below the edges of the bricks or stones. This design creates a shadow effect that emphasizes the outlines of each unit and adds depth to the wall’s appearance. However, its recessed nature means it offers less protection against moisture.
- Struck Joint: Featuring mortar that is sloped downward from top to bottom, struck joints help in directing water away from the brickwork. This feature enhances water runoff and can contribute to the longevity of a wall, although the exposed top edge may deteriorate faster than in other types of joints due to weathering.
Each of these joint types offers its own set of advantages, and builders choose them based on specific needs such as aesthetic preference, environmental exposure, and structural requirements. By selecting the appropriate type of masonry joint, builders and architects can ensure that their structures are not only visually appealing but also structurally sound and durable. Understanding these options allows for informed decisions that enhance the performance and longevity of masonry constructions.
Applications of Masonry Joints
When it comes to building with brick, stone, or concrete blocks, the choice of masonry joint type is not just a minor detail—it plays a pivotal role in both the functionality and the overall look of the building. Different types of joints serve distinct purposes, enhancing everything from the structural integrity to the visual appeal of the facade. Let’s break down how to apply the different types of masonry joints and why selecting them is crucial depending on various factors such as climate, architectural design, and specific structural requirements.
Enhancing Structural Integrity
Masonry joints significantly influence the durability and strength of a structure. For example, concave and Vee joints are excellent choices for areas prone to harsh weather conditions. Their ability to effectively channel water away from the building helps prevent water ingress, which can lead to structural damage over time. On the other hand, joints like the butt and slip joints are more suited for interior or sheltered areas where water exposure is minimal. These joints allow for some movement within the structure, helping to prevent cracks due to thermal expansion and contraction.
Improving Aesthetic Appeal
The type of joint used can also dramatically affect the appearance of a building. A raked joint, for instance, creates a pronounced shadow effect that highlights the individual masonry units, adding depth and texture to the wall’s surface. This can be particularly striking in artistic or decorative projects where visual impact is a key element of the design. Flush joints offer a smooth, uniform look that is often sought after in modern architectural styles. They provide a clean, streamlined facade that emphasizes the uniformity and precision of the masonry.
Adapting to Climate
The climate plays a significant role in selecting masonry joints. In regions with frequent and intense rain, waterproof joints like the concave or Vee are preferred to protect the structure from moisture. In colder climates, where freeze-thaw cycles can be damaging, these joints help reduce the risk of water seeping into cracks and causing significant damage as it freezes and expands. For hotter climates, joints that allow for thermal expansion without cracking, like the slip joint, are crucial. They maintain the integrity of masonry work over time.
Meeting Specific Structural Needs
The design and purpose of a building also dictate the choice of masonry joints. Load-bearing walls require sturdy, well-sealed joints to ensure safety and longevity, whereas non-load-bearing walls can use less robust joint types. Additionally, the specific architectural style of a building can influence joint selection. Historical renovations may require the use of traditional techniques and joint types to preserve the original aesthetic and comply with heritage conservation standards.
Considerations for Choosing Masonry Joints
Selecting the right type of masonry joint is crucial for ensuring the longevity and functionality of a structure, as well as its appearance. When choosing the appropriate joint, several key factors must be considered:
Weather Conditions
The climate where the building is located plays a significant role in selecting the right masonry joint. In areas with heavy rainfall or frequent freeze-thaw cycles, it’s important to choose joints that manage moisture effectively. For example, concave and Vee joints are excellent choices for such conditions. They help channel water away from the masonry units, reducing the risk of water ingress and associated damage like cracking or spalling. In contrast, areas with mild weather might allow for more variety in joint selection. This includes aesthetic-driven choices like flush or raked joints, without compromising the structure’s integrity.
Aesthetic Preferences
The visual impact of masonry joints is not something to overlook. Different joints offer different visual appeals and can dramatically alter the appearance of a building. For instance, raked joints create a shadow effect that accentuates the individual stones or bricks, making the masonry pattern more pronounced. This is particularly popular in architectural styles that emphasize texture and depth. Conversely, flush joints give a smooth, consistent surface that might be preferred in more modern or minimalist designs. The choice of joint can complement a building’s style, enhancing its overall aesthetic appeal.
Structural Requirements
The structural demands of a building also dictate the appropriate choice of masonry joints. Load-bearing walls, for instance, require robust joints that can support the weight and stress placed upon them. Joints like the concave joint not only resist water but also provide strong bonding and structural integrity. For non-load-bearing walls or parts of buildings that need to accommodate movement, flexible joints like the slip joint are more suitable. They are ideal for use between different building sections or materials. These joints allow for expansion and contraction without damaging the masonry.
Additional Considerations
- Compatibility with Masonry Units: The type of brick, block, or stone can also influence the choice of joint. Certain materials may require specific joint types to ensure optimal bonding and durability.
- Maintenance and Repair: Some joints are easier to maintain and repair than others. Considering the long-term maintenance requirements can save significant time and resources. For example, joints that are more exposed to the elements, such as struck joints, might require more frequent inspections and repairs.
- Local Building Codes and Regulations: Sometimes influence the choice of joint, dictating certain requirements for construction practices and materials to ensure safety and compliance.
Making an informed choice about masonry joints requires a careful consideration of these factors. By understanding how each type of joint performs under different conditions, and how they contribute to the building’s overall requirements, architects, builders, and homeowners can make decisions. These decisions ensure their structures are both beautiful and durable. The right masonry joint does more than just hold a building together. It ensures that the structure can withstand the challenges posed by its environment while fulfilling the aesthetic and functional needs of its occupants.
Maintenance and Repair of Masonry Joints
Keeping masonry joints in good shape is vital for the longevity and safety of any masonry structure. Regular maintenance and timely repairs can prevent minor issues from becoming major problems, ultimately extending the structure’s lifespan. Let’s discuss how to effectively maintain and repair masonry joints. We’ll focus on what needs regular attention and how different types of joints might require different approaches.
Regular Inspection
Regularly inspecting masonry joints for signs of wear and damage is key. This includes looking for any cracks, mortar erosion, or signs of moisture penetration. These issues can lead to more significant structural problems if left unattended. Inspect at least once a year, or more frequently in areas exposed to severe weather conditions. During these inspections, it’s important to check not just the visible parts of the joints, but also those harder to see. Using tools like binoculars or drones can help inspect high or difficult-to-reach areas.
Repair Techniques
The repair process, often referred to as ‘repointing,’ involves removing damaged mortar and replacing it with new mortar. Repointing restores the physical integrity of the masonry. It also helps in waterproofing and improving the cosmetic appearance of the structure. Here’s how it typically works:
- Removal of Old Mortar: The first step is to carefully remove the old, damaged mortar. Usually, you use hand tools like chisels and rakes to do this, ensuring that you do not damage the masonry units during the process.
- Preparation and Cleaning: Once the old mortar is removed, the joints are thoroughly cleaned to remove any loose material and debris. This step is crucial to ensure that the new mortar adheres properly.
- Choosing the Right Mortar: It’s essential to match the new mortar to the existing mortar in color, composition, and strength. Using the wrong type of mortar can not only affect the appearance but also the durability and structural integrity of the joint.
- Application of New Mortar: Carefully apply the new mortar to the joints, fully compacting it and shaping it to match the style of the existing joints.
- Curing: After application, the mortar needs time to cure. It is important to keep the new mortar moist during the curing process to prevent cracking.
Materials Used in Repair
The materials used for repairing masonry joints depend largely on the type of joint and the specific requirements of the building. For historical buildings, builders often use lime-based mortars because they offer better compatibility with older stones or bricks. For more modern buildings, cement-based mortars might be more appropriate due to their strength and durability.
Preventive Measures
Beyond repairs, taking preventive measures can also help extend the life of masonry joints. This includes applying water-repellent coatings to exposed joints. Ensure good drainage around the building to reduce water exposure and avoid the use of harsh chemicals for cleaning masonry surfaces.
By maintaining and repairing masonry joints properly, you can help ensure that a building remains beautiful. It will also be functional and structurally sound for years to come. Regular attention to these details not only saves money on more extensive repairs down the line. It also helps preserve the building’s historical and aesthetic value.
Conclusion
With a solid understanding of the types of masonry joints, you’re well on your way. This ensures that your construction projects are both visually pleasing and structurally sound. If you’re looking for professional assistance with selecting or applying the right types of masonry joints, feel free to reach out to a skilled contractor. For expert advice or services, contact (+1) 917-355-8556. This knowledge not only supports the physical integrity of buildings but also enhances their aesthetic value. It proves that a good foundation in masonry can truly elevate the craft of building.
FAQs
Q: What are the common types of masonry joints?
A: The most common types of masonry joints include concave, Vee, and flush joints. Each serves a different purpose. Concave joints excel in water resistance, Vee joints enhance aesthetics sharply, and flush joints provide a smooth finish.
Q: How does the selection of joint types affect a building’s durability?
A: The selection of joint types is crucial for a building’s durability. Properly chosen joints prevent water infiltration, accommodate structural movements, and distribute loads evenly. All of these contribute to the longevity of the structure.
Q: How often should different types of masonry seams be inspected for maintenance?
A: Different types of masonry seams should be inspected at least once a year. In areas with severe weather or visible signs of wear and tear, more frequent inspections are advisable. This helps maintain structural health.
Q: Do different types of joints vary based on the building materials used?
A: Yes, the types of joints can vary depending on the building materials. Different bricks or stones may require specific joint types to ensure optimal bonding, durability, and aesthetic appeal.
Q: Which types of masonry connections are best for moist environments?
A: For moist environments, concave and Vee joints are the best choices. Their design helps channel water away effectively, reducing moisture-related structural problems.
